Cottonseed Dephenol Protein Processing Plant

Cottonseed dephenol protein is a high-protein product made from cottonseeds that have been delinted and hulled, then subjected to low-temperature extraction for oil extraction, followed by removal of the toxic substance, gossypol. Henan Huatai Group offers a variety of protein production solutions for dephenolized cottonseed protein projects.

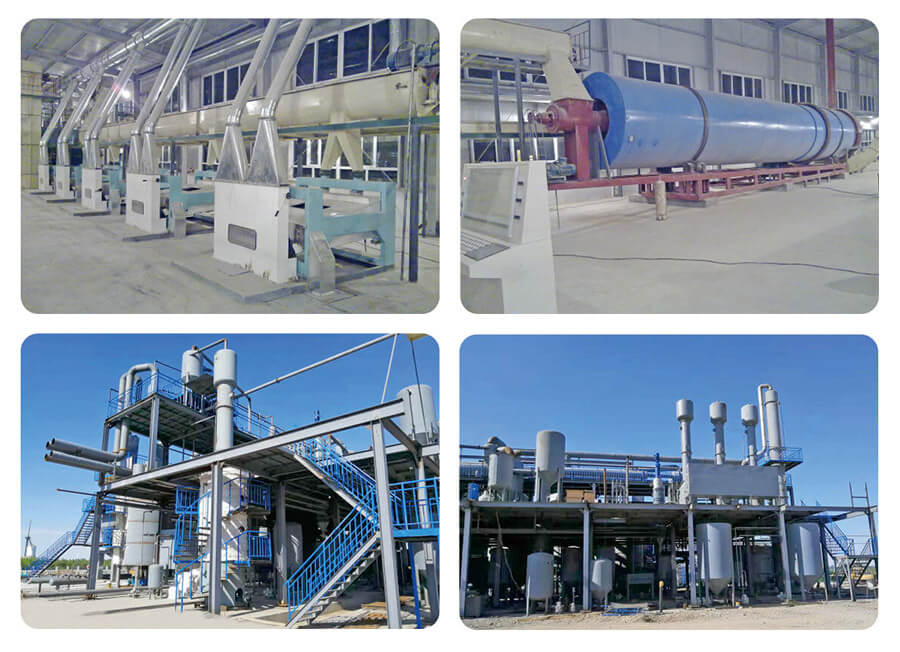

Cottonseed dephenol protein extraction process

Huatai Group Cottonseed Dephenol Protein Processing Features

Add a super stripping and brightening system with multistage air separation on cottonseed knife plate sheller. Make sure the shell content in the kernel is freely regulated at 1-3%, and produced protein content is 60-65%, easy to adjust.

Add expanding equipment in the pretreatment workshop, achieve automatic switching of high and low-temperature proteins.

In the wet meal treatment, use ATLAS dehydrator independently developed by Huatai to reduce heat exchange area of disc dryer and reduce the amount of steam and cooling water.

Hybrids for the dehydric coating section are segmented, The extraction workshop is equipped with mixed oil refining and, can directly produce three-level cotton oil.

On the basis of freezing recovery, the free gas increases adsorption recovery of paraffin, which greatly reduces solvent consumption.

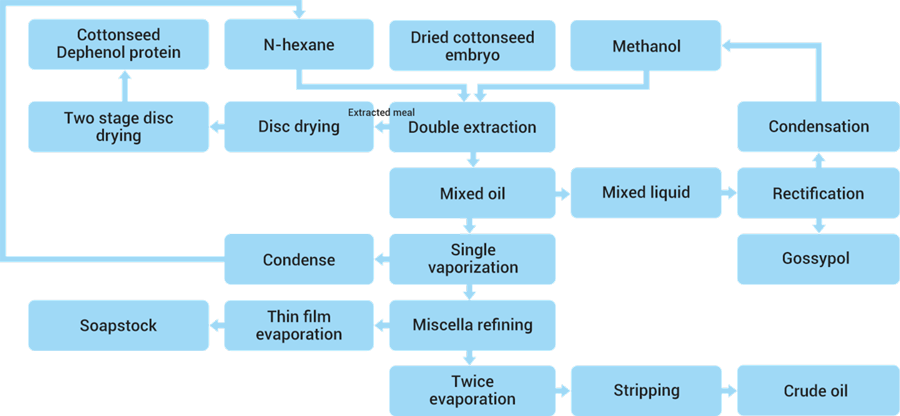

Cottonseed dephenol protein extraction diagram

Main process technical indicators

• Steam: 220kg/t cottonseed
• Electricity: 28kwH/t (low protein)、32kwH/t (high protein)
• Methanol: 2.5kg/t (cottonseed)
• Industrial Hexane: 1.5kg/t (cottonseed)
• Water: 220kg/t (cottonseed)
• Circulating water: 20t/t (cottonseed)

Quality index of cottonseed protein products

• Cottonseed protein moisture: 6-7%
• Residual oil rate on dry basis: ≤0.6%
• Free cotton phenol content: ≤20ppm
• Protein content: >60-65%
• Protein solubility: >50%

Henan Huatai Intelligent Equipment Group can provide you with complete set of cottonseed dephenol protein extraction solutions. We can build 150TPD, 300TPD, 500TPD, 800TPD, 1000TPD, 1500TPD, 2000TPD cottonseed dephenolization protein processing plants and offer complete turkey projects. Please feel free to consult us.
